Cannondale Quick 5

Cannondale Quick 5
$595.00 - $735.00
$735.00
Color: Acid Lime
Size: Select size
Please select options Unavailable

Details

Quick As You Like
A swift, sporty bike that's perfect for getting a workout, city cruising or just getting out and feeling good.

Where it thrives
In town, leisurely rides, on crowded streets

What it's built for
Agility, visibility, comfort

Highlights
- Lightweight aluminum frame w/ 360° reflective accents
- Shimano Tourney TX 14-speed drivetrain w/ disc brakes
- Integrated connectivity with Cannondale App

Versatile
A bike of all trades. Plenty of reflective accents and mounts for racks and fenders make Quick perfect for rides through the city, and it's sporty enough for harder riding to keep you healthy and fit.

Comfortable & capable
Comfort comes standard thanks to bump-absorbing SAVE micro-suspension, and a riding position that's upright for visibility and ease, yet forward enough for efficient speed.

Premier performance
First and foremost, Quick is quick. This bike is lightweight, nimble and comfortable, with fast tires, confident handling, and gearing that's just right for darting around town.

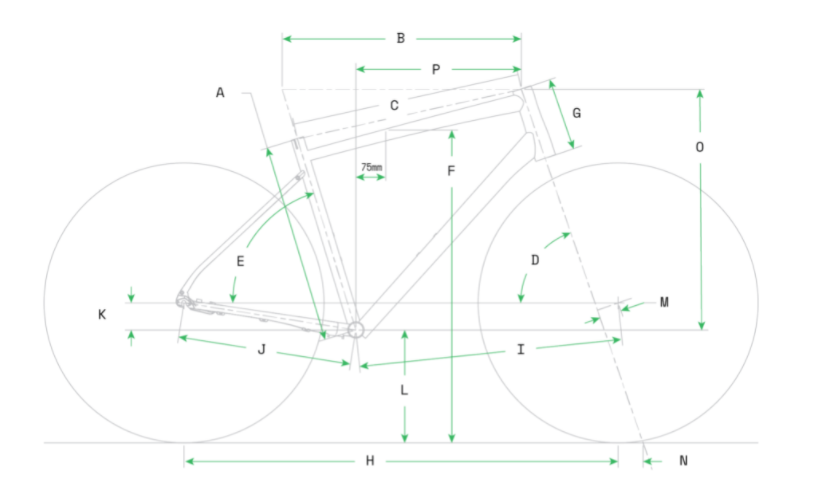

Geometry Chart:
Frame SizeSmallMediumLargeX-LargeXX-Large
A. Seat Tube Length (cm) 40 45 50 55 60
B. Top Tube Horizontal (cm) 56.7 58.3 59.8 61.3 62.8
Top Tube Actual (cm)
D. Head Tube Angle 71° 71° 71° 71° 71°
E. Seat Tube Angle 73° 73° 73° 73° 73°
F. Standover (cm) 69.9 74.1 78.2 82.2 86.2
G. Head Tube Length (cm) 13.3 15.8 18.4 20.9 23.4
H. Wheelbase (cm) 105.3 107 108.6 110.2 111.8
I. Front Center (cm) 62.7 64.4 66 67.6 69.2
J. Chain Stay Length (cm) 43.5 43.5 43.5 43.5 43.5
K. Bottom Bracket Drop (cm) 6.8 6.8 6.8 6.8 6.8
L. Bottom Bracket Height (cm) 28.2 28.2 28.2 28.2 28.2
M. Fork Rake (cm) 5.5 5.5 5.5 5.5 5.5
N. Trail (cm) 6.2 6.2 6.2 6.2 6.2
O. Stack (cm) 55.4 57.8 60.2 62.6 65
P. Reach (cm) 39.8 40.6 41.4 42.2 43
Sizes:
Frame SizeRider Height
Small 5'2" - 5'7"
Medium 5'5" - 5'10"
Large 5'9" - 6'2"
X-Large 6'0" - 6'5"
XX-Large 6'4 - 6'9"

Specs

Frame SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
Fork Chromoly, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade mounts
Wheels Cannondale Disc, double wall w/eyelet, 32h
Hubs (F) Shimano HB-TX505, QR / (R) Shimano FH-TY505, QR
Spokes Stainless Steel, 14g
Tires Kenda Kwest, 700 x 35c, K-Guard, reflective strip
Bottom Bracket Cartridge, square taper
Crankset Shimano Tourney, 46/30
Shifters Shimano M315 Rapidfire Plus, 7-speed
Front Derailleur Shimano Tourney, 31.8 clamp
Rear Derailleur Shimano Tourney
Cassette/Freewheel Shimano HG200, 12-32, 7-speed
Chain KMC Z7, 7-speed
Brakes Promax mechanical disc, 160/160mm rotors
Brake Levers Promax BL42
Handlebars 6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm
Tape/Grips Cannondale Ergo Fitness
Stem 6061 Alloy, 31.8, 8°
Headset Integrated, 1-1/4"-1-1/8"
Seatpost 6061 Alloy, 27.2 x 350mm
Saddle Cannondale Fitness Ergo Double Density
Pedals Cannondale Fitness

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Acid Lime / Small 884603940549 C31501M30SM 210000135819
Acid Lime / Medium 884603940556 C31501M30MD 210000135818
Acid Lime / Large 884603940563 C31501M30LG 210000135817
Acid Lime / X-Large 884603940570 C31501M30XL 210000135820
Acid Lime / XX-Large 884603940587 C31501M302X
